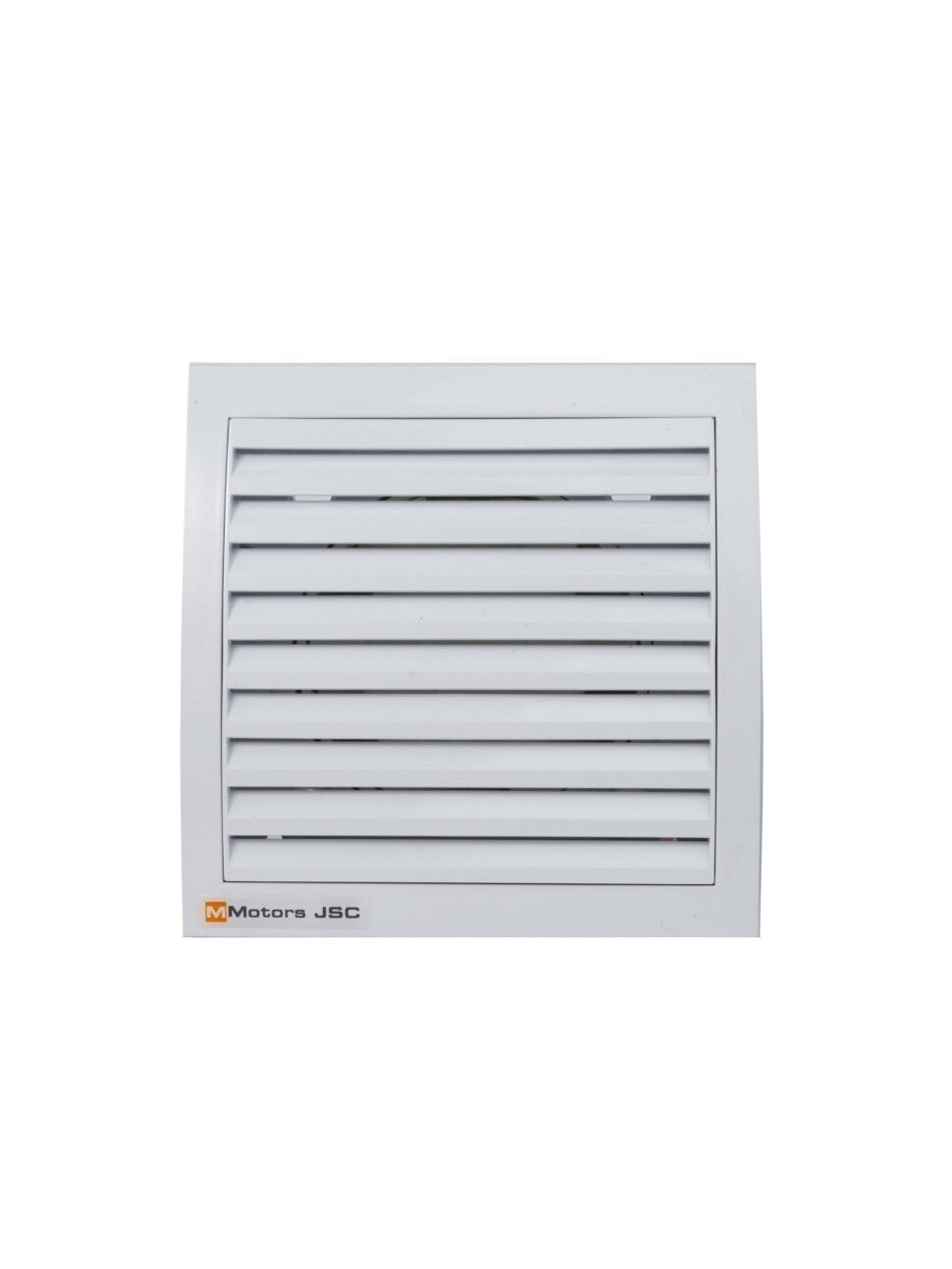

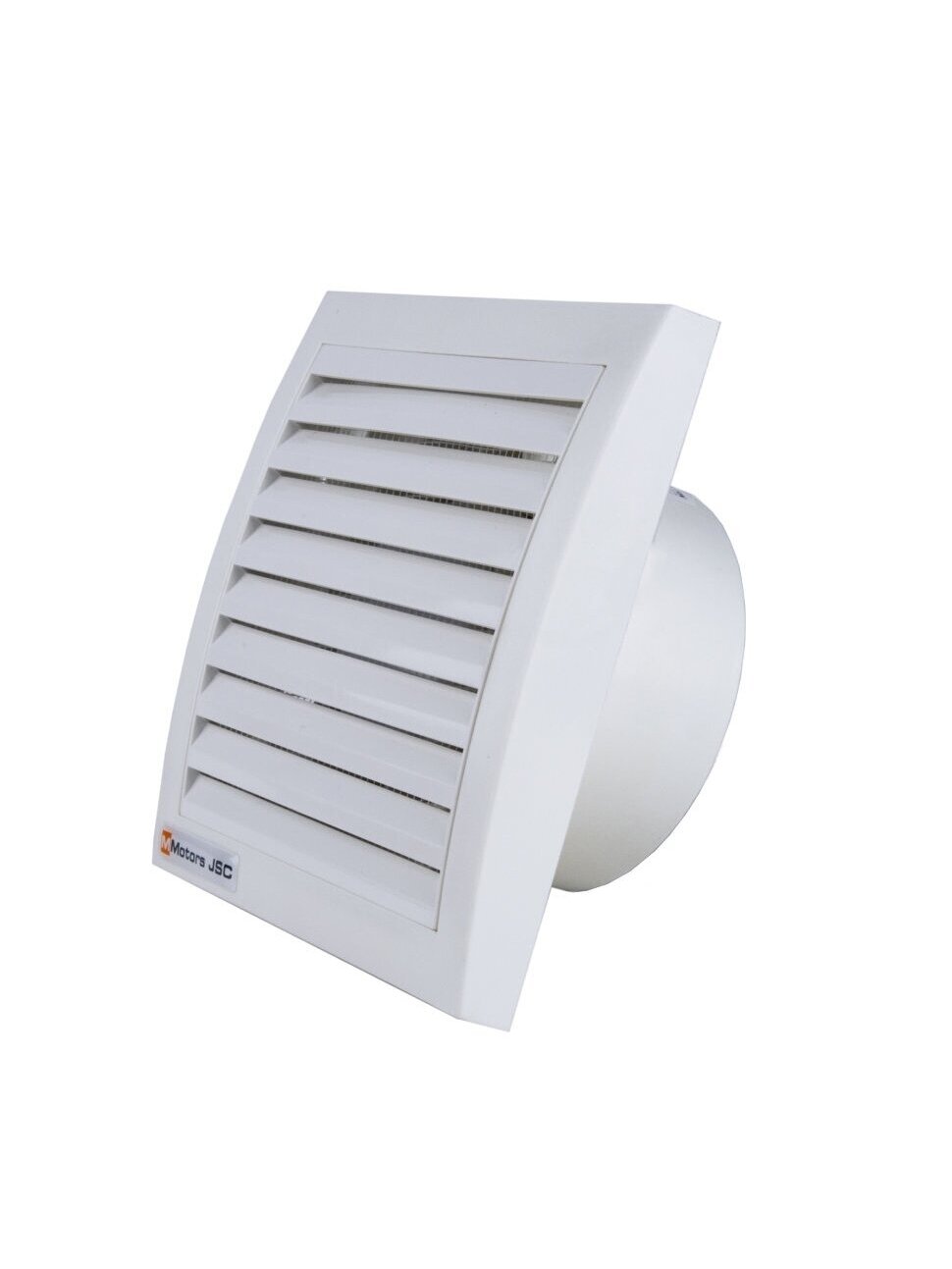

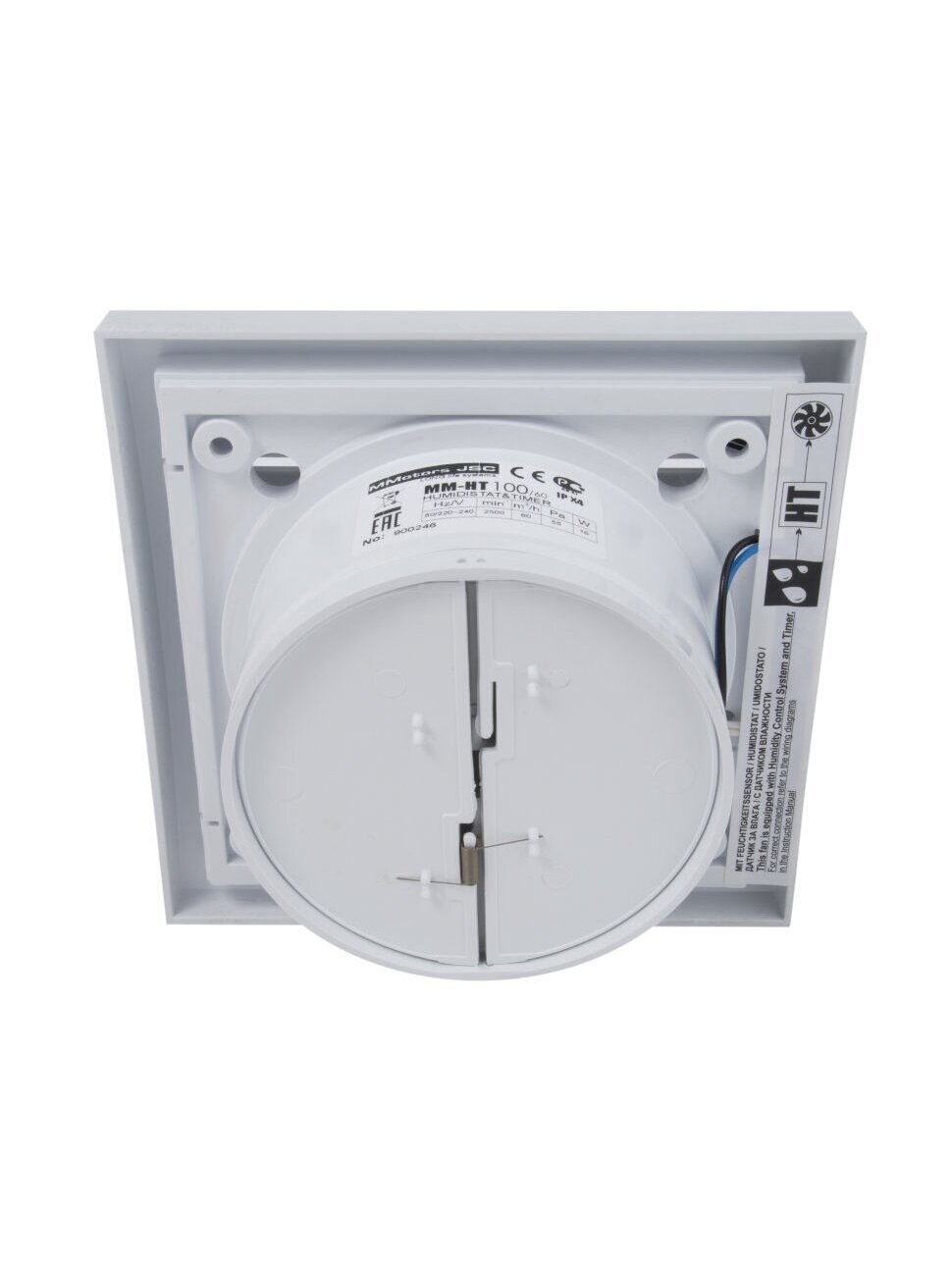

MM 100/105

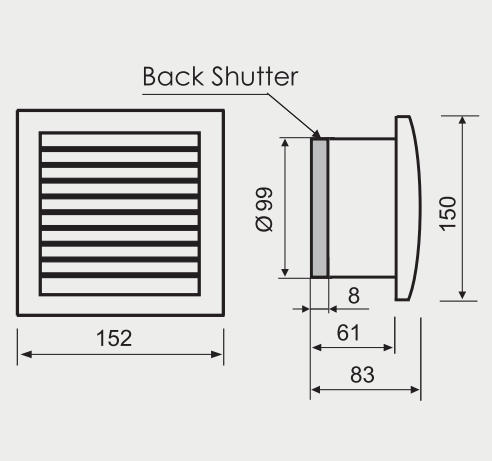

MM 100/105 SQUARE WITH BACK SHUTTER T-HCS

€39.70

This category includes our fans with ultra-thin nozzles. This unique technical solution became possible due to the patented ultra-thin engine with outstanding characteristics. The minimal thickness of the nozzle allows the installation of the fan in places with close to no installation space like inside of hanging ceilings or camper vans. The levels of protection of in-built electric engine allow the fan to work normally under the conditions of high humidity. All household exhaust fans are equipped with a net preventing insects from entering the room. They can also be customized with additional options: check valve, timer, humidity and light sensors, as well as in-built LED lighting

Specifications

PHASE / VOLTAGE, V

1f / 230V

CURRENT FREQUENCY, HZ

50

POWER MAX, W

17

PRESSURE, MAX, PA

55

PRODUCTIVITY (AIR EXCHANGE), м³/H

105

ROTATION FREQUENCY, RPM

2500

INSTALLATION DIAMETER (MM)

100

NOISE LEVEL, DB

32

PROTECTION CLASS (IP)

IPX4

ATTRIBUTES

ball bearing with NSK/SKF

ADDITIONAL FEATURES

standard

FAN TYPE

axial

FRONT PANEL MATERIAL

ABS plastic

BODY MATERIAL

ABS plastic

COLOR

white
